Description
Containment Area Pressure Monitor
-Due to supplier issues, this product is expected to be back in stock in 2nd quarter 2022-
Provides and easy assessment of the pressure differential between the inside and outside of an enclosure.
Includes:

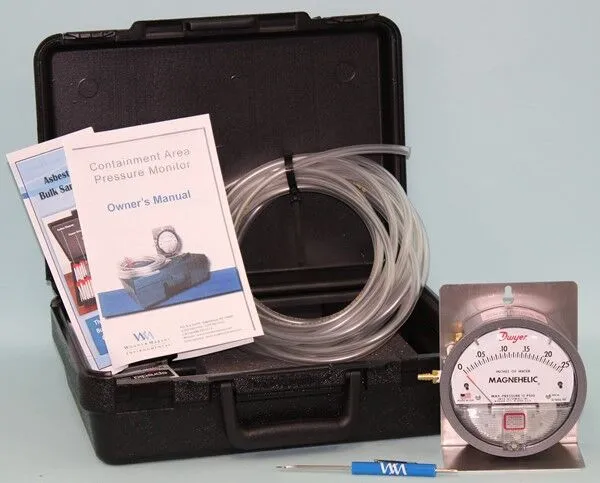

Magnehelic gauge with built-in bubble level, 20′ of clear flexible tubing, barb connection ports, calibration screwdriver, L-bracket, and carrying case
- Meets OSHA requirements for Class 1 work
- Measures pressure differential in increments of 0.005 inches of water, effective to a maximum pressure of 15 PSIG (100kPa) and at a maximum temperature of 140 degrees F (60 degrees C)
- Built in bubble level indicates vertical positioning; includes an L-bracket for mounting on the wall or a level surface
- Complete instructions and sample documentation form included
Click Here for the Product Specification Sheet
Specification
Dimensions:
4-1/2″ L x 5-1/2″ W x 2-1/4″ H
Materials:
Aluminum, glass, and brass
Weight:
3 lbs 8 oz. (including case, L-bracket and tubing)
Finish:
Brushed aluminum
